Yaesu communication

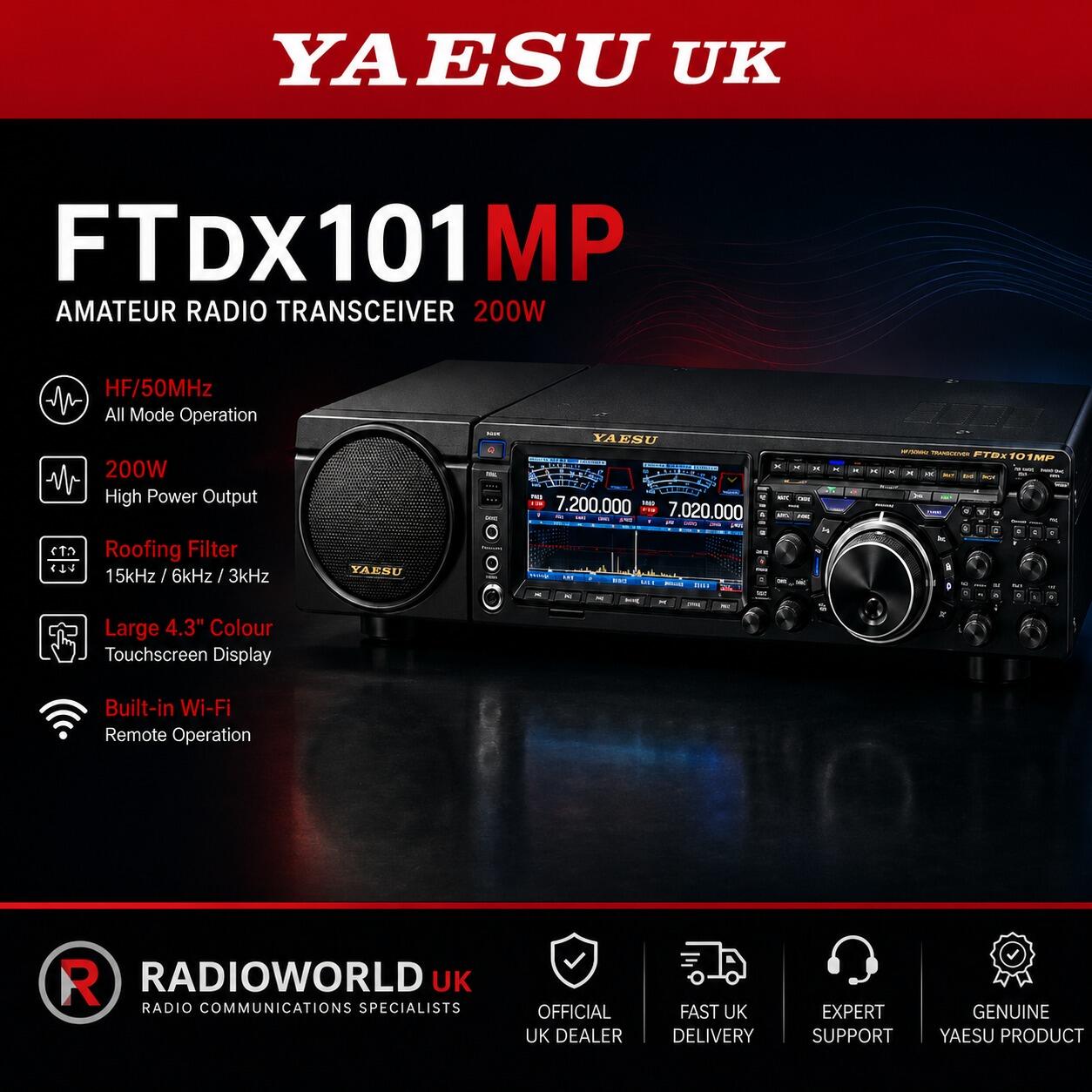

Yaesu FTDX101MP 200W HF & 6m Transceiver with FPS-101 Power Supply
YAESU FTDX101MP 200W
Yaesu communication
Yaesu FTDX101MP 200W HF & 6m Transceiver with FPS-101 Power Supply
£4,199.95 (£3,499.96 exc. VAT)
Download a PDF document for Yaesu FTDX101MP 200W HF & 6m Transceiver with FPS-101 Power Supply
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:FTDX-100MP
Brand:Yaesu communication

The FTDX101MP is supplied with the following accessories; External FPS-101 Power Supply with Front Facing Speaker, VCT-101 VC-Tune unit x 2 (MAIN and SUB bands).300 Hz Crystal Roofing Filter (MAIN band). 600 Hz Crystal Roofing Filter (MAIN and SUB bands). 3 kHz Crystal Roofing Filter (MAIN and SUB bands).

The FTdx101D is a dual receiver Hybrid SDR transceiver that combines the large Dynamic Range of a Direct Sampling SDR with the super sensitivity and selectivity of a narrow band SDR. There are two TX power models, the 200W FTdx101MP named in honour of Mr Sako Hasegawa JA1MP the founder of Yaesu Musen Co. and the 100W FTdx101D.

Hybrid SDRs (Narrow Band SDR & Direct Sampling SDR)

2kHz RMDR 123dB+

2kHz BDR 150dB+

2kHz 3rd IMDR 110dB+

400MHz HRDDS (High Resolution Direct Digital Synthesizer)

2kHz Phase Noise -150dBc/Hz

VC-TUNE (Variable Capacitor Tune) signal peaking

3DSS (3-Dimensional Spectrum Stream) visual displaY

Narrow band SDR & Direct Sampling SDR

Emphasizes Basic Performance and Hybrid SDR Functionality

Includes Digital Processing Generated Real-Time Spectrum Scope

±Hybrid SDR Configuration

In addition to the Narrow band SDR receiver, that boasts overwhelming Basic Performance, the Hybrid Configuration Digital Processing with Direct Sampling SDR permits inclusion of the superb Real-Time Spectrum Scope. *300Hz and 1.2kHz roofing filters (Optional)

Narrow band SDR

Crystal Roofing Filters produce phenomenal Multi-signal characteristics

The Down Conversion type receiver construction is similar to the FTDX5000. The first IF frequency is 9 MHz, and a low noise figure dual gate MOS FET, D-quad DBM (Double Balanced Mixer) with excellent intermodulation characteristics, is implemented in the mixer section. Narrow band SDR configuration makes it possible to use the narrow bandwidth crystal roofing filters that have the sharp shape factor. This achieves the amazing multi-signal receiving performance when confronted with the most challenging on-the-air interference situations.

In addition to IF down-conversion, The FTDX101 receivers implement the YAESU legendary powerful RF Front-Ends, outstanding low-noise Local Oscillators, roofing filters with sharp shape factors, and the latest circuit configurations that we carefully selected for all circuit elements. Consequently, the proximity BDR (Blocking Dynamic Range) in the 14 MHz band reaches 150 dB or more, the RMDR (Reciprocal Mixing Dynamic range) reaches 123 dB or more, and the 3rd IMDR (third-order Intermodulation Dynamic Range) reaches 110 dB or more.

Narrow Band SDR + Direct Sampling SDR

Emphasizes Excellent Receiver Performance and Hybrid SDR Functionality

Digital Processing Generated Real-Time Spectrum Scope

The Narrow band SDR receiver removes strong out of band signals by using a superheterodyne method, with narrow band roofing filters which significantly attenuates unwanted out of band frequency components, and the wanted signals within the passband are converted to digital by a high resolution 18-bit A/D converter and sent to an FPGA (Field Programmable Gate Array) for signal processing.

The FT DX 101 series uses a hybrid SDR configuration that integrates a direct sampling SDR receiver in order to view the entire band status in real time, with the excellent dynamic receiver performance achieved by the narrow band SDR receiver circuit.

By using this hybrid SDR design, the overall performance of the entire FTDX101 receiver system is improved. The Direct Sampling SDR driving the real time Spectrum display with its large dynamic range enables the weakest signal to be observed on the display when it appears and the Narrow Band SDR enables that signal to be selected, filtered and then decoded.

If there is powerful AM station near your location or in challenging operating situations where there are a lot of strong signals in the band from Contests, DX-pedition activities, those signals outside the pass band can be attenuated by the very effective roofing filter in the front stage of the A/D converter. This reduces the signal load on the A/D converter which is a bottleneck from the viewpoint of the entire receiving circuit. Therefore, interference is reduced making it is possible to continue to operate even under such difficult conditions.

Truly Quiet and Clear Reception

Ultra Low-Noise Local Oscillator System; 400MHz HRDDS (High Resolution Direct Digital Synthesizer)

The C/N ratio (signal-to-noise ratio) of the local signal injected into the 1st mixer is an important factor in improving the proximity multi-signal characteristics. The local circuit of the FTDX101 series uses the 400 MHz HRDDS (High Resolution Direct Digital Synthesizer) method that was used in the FTDX5000. This circuit configuration is different from a generic PLL that generates a local signal. Creating the local signal by directly dividing the high frequency of 400 MHz, the theoretical PLL lockup time becomes zero, and C/N deterioration by the lockup time does not occur.

The significant improvement of the C/N characteristic by directly dividing the frequency contributes dramatically to reduce the noise in the entire receiver stage, and also improve the BDR (Blocking Dynamic Range) characteristic in strong signals proximity.

In the FTDX 101 series, in addition to the adoption of the 400 MHz HRDDS, the latest circuit configurations that reduced noise, and carefully selected components are used. As a result, the phase noise characteristic of the local signal achieves an excellent value of -150 dBc/Hz or less at 2kHz separation.

This low-noise, high-quality local signal contributes significantly to the multi-signal and the ultra-close signal proximity (such as a few hundred hertz) characteristics.

Unparalleled -70 dB Maximum Attenuation VC-Tune

Newly developed VC-Tune RF Preselector with high precision stepping motor drive provides outstanding attenuation characteristics

Frequency automatic adjustment RF Preselector VC-Tune

In the FTDX101 series, a next-generation RF preselector VC-Tune further improves the high-performance RF μ (mu)-Tuning system adopted in FTDX9000. Using a remarkable miniaturization design while producing unparalleled characteristics and maximum attenuation of -70 dB.

Newly developed VC-tune circuit drives a variable capacitor (VC) with a high precision stepping motor and achieved remarkable miniaturization over μ-tuning system.

VC-Tune has no annoying steps or switching relays by continuously covering the band with a variable capacitor driven by a high-precision stepping motor following the frequency. The conventional preset method of switching coils and capacitors with relays is eliminated.

When there are multiple strong signals in the band, press the "VC TUNE" key and turn the MPVD (Multi-Purpose VFO Outer Dial) ring on the VFO dial to activate the high-precision stepping motor to adjust the variable capacitor. Fine tune to the optimum point that attenuates the strong signal in the band while operating the VFO dial.

VC-Tune stores the last tuning point for each band, so when broadcast-like signals are periodically transmitted on the same frequency, that frequency can always be attenuated by setting the VC-Tune once.

The Highest Transmit Signal Purity

High-Quality transmission with outstanding phase noise characteristics

Transmit Final Stage produces the Highest Signal Purity

The excellent C/N characteristics provided by the 400MHz HRDDS (High Resolution Direct Digital Synthesizer) used in the local oscillator circuit also contributes significantly to the transmitter section. In a generic circuit, noise or distortion may occur depending on the circuit configuration and the components, up to the final stage that is producing the transmit signal, even if the local signal is of high quality. In the FTDX101, a thorough examination of each element up to the final TX stage was made. The clock that divides and distributes the local signal from the 400MHz HRDDS circuit to each block, as well as the FPGA, D/A converter, the final power amplifier etc., and carefully selecting the latest circuit configurations to improve the C/N characteristics of the entire transmitter block. The transmit signal of the FTDX101 is directly generated from a 16-bit D/A converter without passing through a mixer circuit, therefore distortion and noise are significantly suppressed.

As a result, high-quality local signal characteristics are maintained without degradation to the final stage, and the transmission phase noise characteristics achieve -150 dBc/Hz at 2kHz separation. FTDX101 transceiver user will appreciate the finest performance with a high-purity transmission signal.

New Generation Scope Display 3DSS

Intuitively grasp changes in the strength of the signals

Newly developed 3DSS (3-Dimentional Spectrum Stream) system

in addition to a conventional Waterfall display

7-inch TFT Color Touch Panel Display

Size: 7-inch Wide

Resolution: 800 x 480 pixels

ABI (Active Band Indicator) & MPVD (Multi-Purpose VFO Outer Dial)

Deliver Superior Operability and Visibility plus Introduce Numerous Functions

Front Panel Design Emphasizes Solid Superior Touch and Operability

Primary important operation functions such as the Main VFO dial, VC-TUNE, WIDTH/SHIFT are arranged near the center of the pane for easy access.

Band select keys are placed as a row of ABI (active band indicator) at the top of the VFO dial, with your operating efficiency and comfort.

Even with a Large 7-inch Touch Panel Display, the panel layout emphasizes quick visibility and operability as a First Priority.

ABI (Active Band Indicator)

ABI is arranged as the band select key in the horizontal a row at the top of VFO dial.

When the band selected as MAIN Band, the LED indicates in white, and when the band selected by SUB band, the LED indicates in blue. At the status of transmission, the LED turns red so you can instantly confirm which VFO is transmitting.

In addition, since the orange LED lights up when you press and hold the band key, you can use it to display a band that has an antenna connected or to display a band operated in DX-pedition mode as a memo. Below the band key is a key for selection between transmission and reception of the MAIN and SUB band, and below that, there is a switching key for using the VFO knob on the MAIN or SUB tuning, so, even when the operating split using both MAIN and SUB bands at the same time, the band control can be performed smoothly, and so tuning the wrong band by mistake is reduced.

MPVD (Multi-Purpose VFO Outer Dial)

The MPVD is a large high-grade aluminium multifunctional ring around the outside of the VFO dial. The ring allows control of SUB VFO frequency dial, VC-TUNE, Clarifier and C/S (custom select function). The MPVD is a handy dial that allows you to adjust important functions in ever-changing HF communications without taking your hand off the VFO. The ring has the traditional Yaesu outstanding smooth and solid feeling when used.

TX Frequency Range, 1.8 MHz - 50MHz Band, Amateur bands only. 70.0 MHz - 70.5MHz (UK Amateur Band only) RX Frequency Range, 30KHz - 75MHz, (Operating Range) 1.8MHz - 29.6999MHz, (Specified performance, Amateur bands only) 50.0MHz - 53.9999MHz, (Specified performance, Amateur bands only) 70.0MHz - 70.4999MHz (Specified performance, UK Amateur bands only) Emission Modes, A1A (CW), A3E(AM), J3E (LSB/USB), F3E (FM), F1B (RTTY),G1B (PSK),Frequency Steps 1/5/10Hz (SSB,CW) 10/100Hz (AM/FM) Antenna Impedance, 50Ω unbalanced Tuner OFF 16.7Ω - 150.0Ω, unbalanced (Tune ON 1.8MHz - 29.7MHz) 25.0Ω - 100.0Ω, unbalanced (Tune ON 50MHz Amateur Band) Operating Temperature Range +32ºF to +122ºF ( 0ºC to +50ºC) Frequency Stability, ±0.1ppm (after 1 minute @ +14ºF to 140ºF [-10ºC to +60ºC]) Supply Voltage AC 100V - 240V (FTDX101MP) DC 13.8V ±10% (FTDX101D) Power Consumption (Approx) RX No Signal - 100VA (FTDX101MP), 3.5A (FTDX101D) RX Signal present - 120VA (FTDX101MP), 4.0A (FTDX101D)

TX 720VA (FTDX101MP : 200W)

TX 23A (FTDX101D : 100W)

Dimentions 16.6" x 5.1" x 12.7"

420mm x 130mm x 322mm

Weight

28.8lbs 13.5Kg

FTDX101MP

26.5lbs, 12.0Kg

FTDX101D

TRANSMITTER

Power Output FTDX101MP 200W (CW,LSB,USB,FM,RTTY,PSK),50W (AM)

FTDX101D 100W (CW,LSB,USB,FM,RTTY,PSK),25W (AM)

Modulation Types J3E SSB Balanced

A3E AM Low Level early Stages

F3E FM Variable Reactance

Maximum FM Deviation ±5KHz or±2.5KHz Narrow

Harmonic Radiation Better than -50dB 1.8 - 29.7 MHz Amateur Bands

Better than -66dB 50MHz Amateur Band 200W

Better than -63dB 50MHz Amateur Band 100W

SSB Carrier Suppression At least 60dB below peak output

Undesired Sideband suppression At least 69dB below peak output

Bandwidth 3KHz (LSB/USB) 500Hz CW

6KHz (AM) 16KHz (FM)

Audio Response (SSB) Not more than -6dB from 300 - 2700Hz

Microphone Impedance 600Ω (200 - 10KΩ) data input

RECEIVER

Circuit Type Double Superhetrodyne

Intermediate Frequencies 1st IF 9.0005MHz (MAIN) 8.9000MHz (SUB)

2nd IF 24KHz Main and Sub

Sensitivity

SSB/CW (BW 2.4KHz/10dB S+N/N) 1.8MHz - 30.0MHz 0.16µV ( AMP 2 'ON')

50MHz - 54MHz 0.125µV (AMP 2 'ON')

70MHz - 70.5MHz 0.16µV (AMP 2 'ON')

AM (BW: 6KHz/10dB S+N/N

30% Modulation @ 400 Hz

0.5MHz - 1.8MHz 6.0µV

1.8MHz - 30MHz 2.0µV (AMP 2 'ON')

50MHz - 54MHz 1.0µV (AMP 2 'ON')

70MHz - 70.5MHz 2.0µV (AMP 2 'ON')

FM ( BW: 12KHz 12dB SINAD) 28MHz - 30MHz 0.25µV (AMP 2 'ON')

50Mhz - 54MHz 0.2µV (AMP 2 'ON')

70MHz - 70.5MHz 0.25µV (AMP 2 'ON')

Selectivity (Widh Centre) -6dB -60dB

CW (BW=0.5KHz) 0.5KHz or better 0.75KHz or less

SSB (BW=2.4KHz) 2.4KHz or better 3.6KHz or less

AM (BW=6KHz) 6KHz or better 15.0KHz or less

FM (BW=12KHz) 12KHz or better 25KHz or less

Image Rejection 70dB or better (1.8MHz - 28MHz Amateur Bands )

60dB or better (50Mhz - 54 MHz Amateur Bands )

Maximium Audio Output 2.5W into 4Ω load with 10% THD

Audio Output Impedance 4Ω to 16Ω ( 4Ω Nominal )

Conducted Radiation Less than 4nW

Transmitter Power - 200W

Supply Voltage - AC 100/20V FPS101 External Power Supply with Speaker SP-101 included

External Speaker - Built into FPS-101 Power Supply

VC-Tune Unit (MAIN) - Fitted as Standard

VC-Tune Unit (SUB) - Fitted as Standard

CW Filter 600Hz - Fitted as Standard for MAIN and SUB

CW Filter 300Hz - Fitted as Standard for MAIN (9.005MHz) Option for SUB XF-129CN (8.9000MHz)**

SSB Filter 3.0KHz - Fitted as Standard for MAIN and SUB

SSB Filter 1.2KHz - Option for MAIN XF-128SN (9.005MHz)** Option for SUB XF-129SN (8.900MHz)**

AM Filtr 12KHz - Fitted as Standard for MAIN and SUB
