Sigma Euro-Comm
LW-20 HF 80 - 6m Multiband Long Wire Antenna / Aerial
LW-20 HF 80 – 6m Multiband Long Wire Antenna / Aerial
Sigma Euro-Comm
LW-20 HF 80 - 6m Multiband Long Wire Antenna / Aerial
£47.95 (£39.96 exc. VAT)
Download a PDF document for LW-20 HF 80 - 6m Multiband Long Wire Antenna / Aerial
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:LW-20
Brand:Sigma Euro-Comm

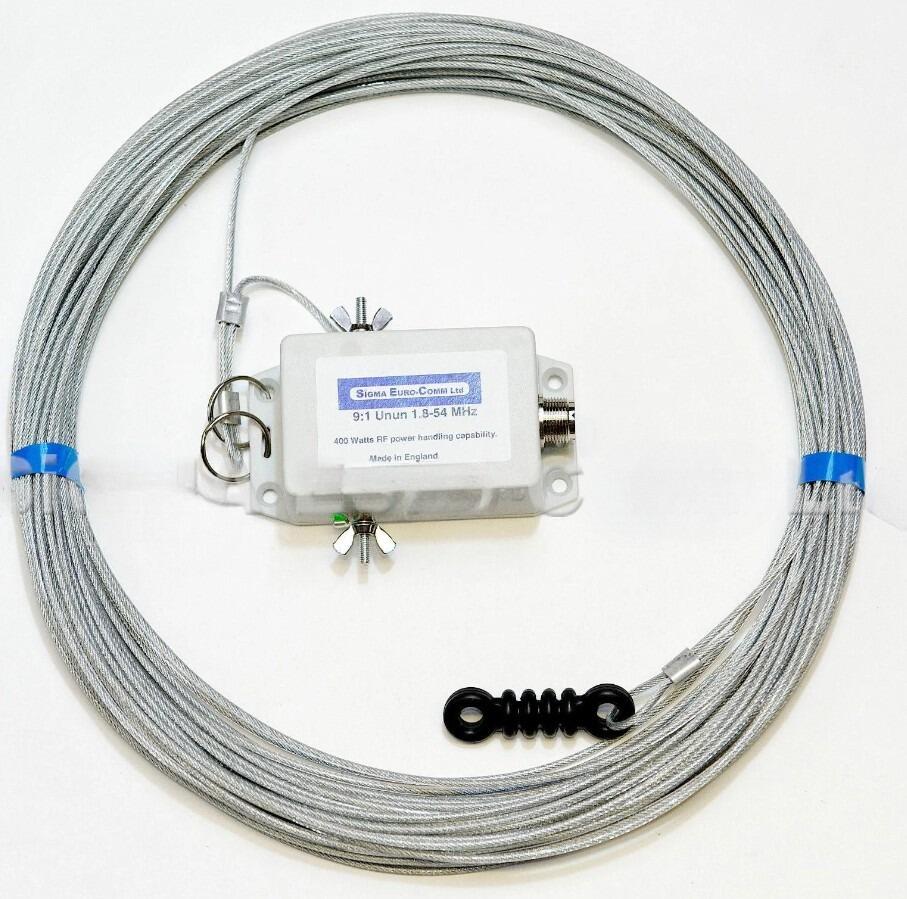

The Sigma Euro-Comm LW-20 Long wire Antenna.The LW-20 are end fed long wire aerials. They all incorporate a 9:1 UNUN at the feedpoint enabling them to be fed directly with 50 Ohm coaxial cable. The 9:1 UNUN also removes static noise and provides a DC path to earth. All are able to handle up to 400W RF (full UK limit). LW-20: 20m in length, this will work on all bands from 80m – 6m via an ATU. Big performance from a small foot print. These antennas give excellent results where space is at premium. However, please note that due to the varying impedance found on any long wire antenna, the built in ATU in your average transceiver will not be able to cope with all bands. For full band coverage you will need an external ATU or possible some form of capacitive loading system. This can be a simple L or T match. The LW-20 comes fully assembled and ready to go. Also the poly weave wire will not kink and is extremely strong.

Specification:

Type: End Fed Wire Antenna

Frequency: 3.5 – 52 MHz

Band: 80-6m

Power: handling 400W, RF

Impedance 50 Ohms

Connector SO-239

Length 20.28 Meters

Non-Kink Poly Weave Wire

Madein Great Britain
