ACOM 2000S Automatic Antenna Selector With Multi Switch
ACOM HF amplifiers
ACOM 2000S Automatic Antenna Selector With Multi Switch

Pre Order Today!

£589.96 (£491.63 exc. VAT)
Download a PDF document for ACOM 2000S Automatic Antenna Selector With Multi Switch
Fast UK
delivery
Worldwide
delivery
BACK-ORDER: This product is available on back-order. It will be dispatched within 14 days of your order.
Add to wishlist
Product code:ASW
Brand:ACOM HF amplifiers

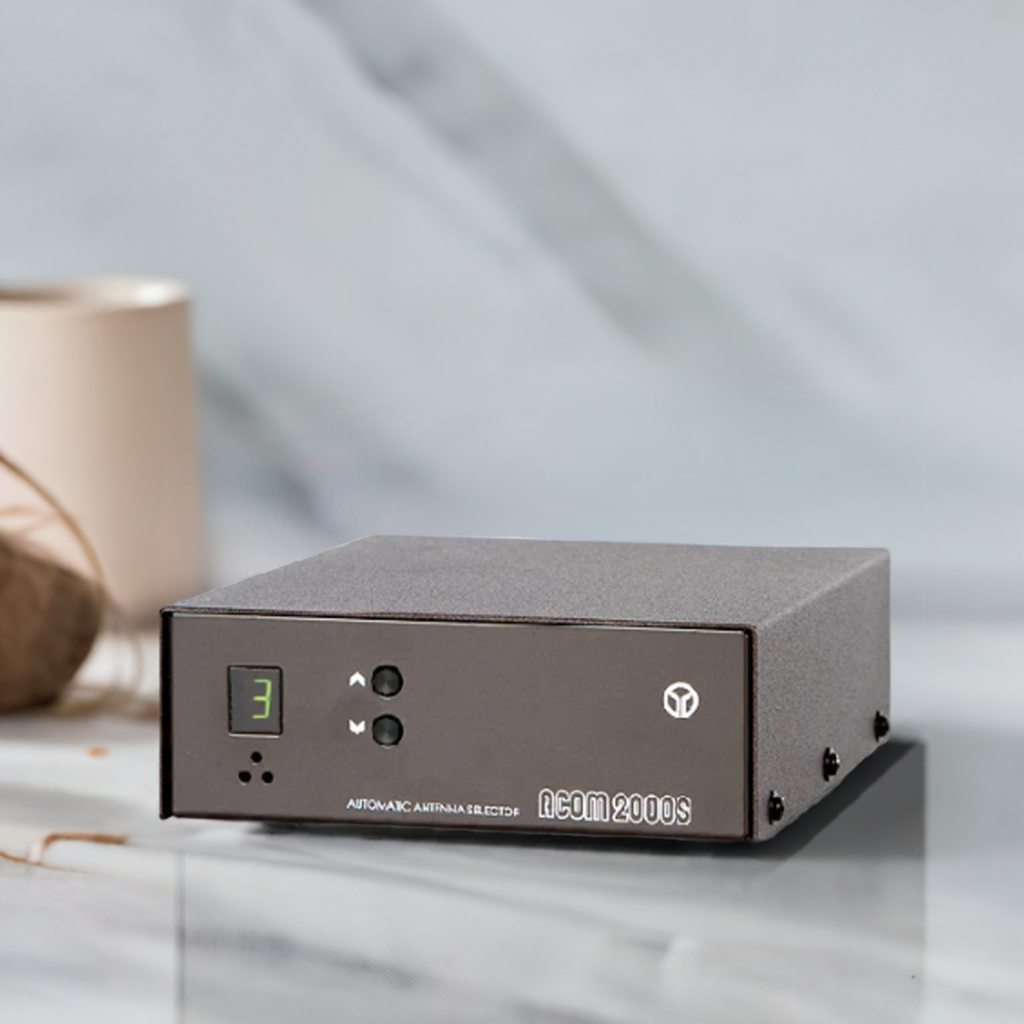

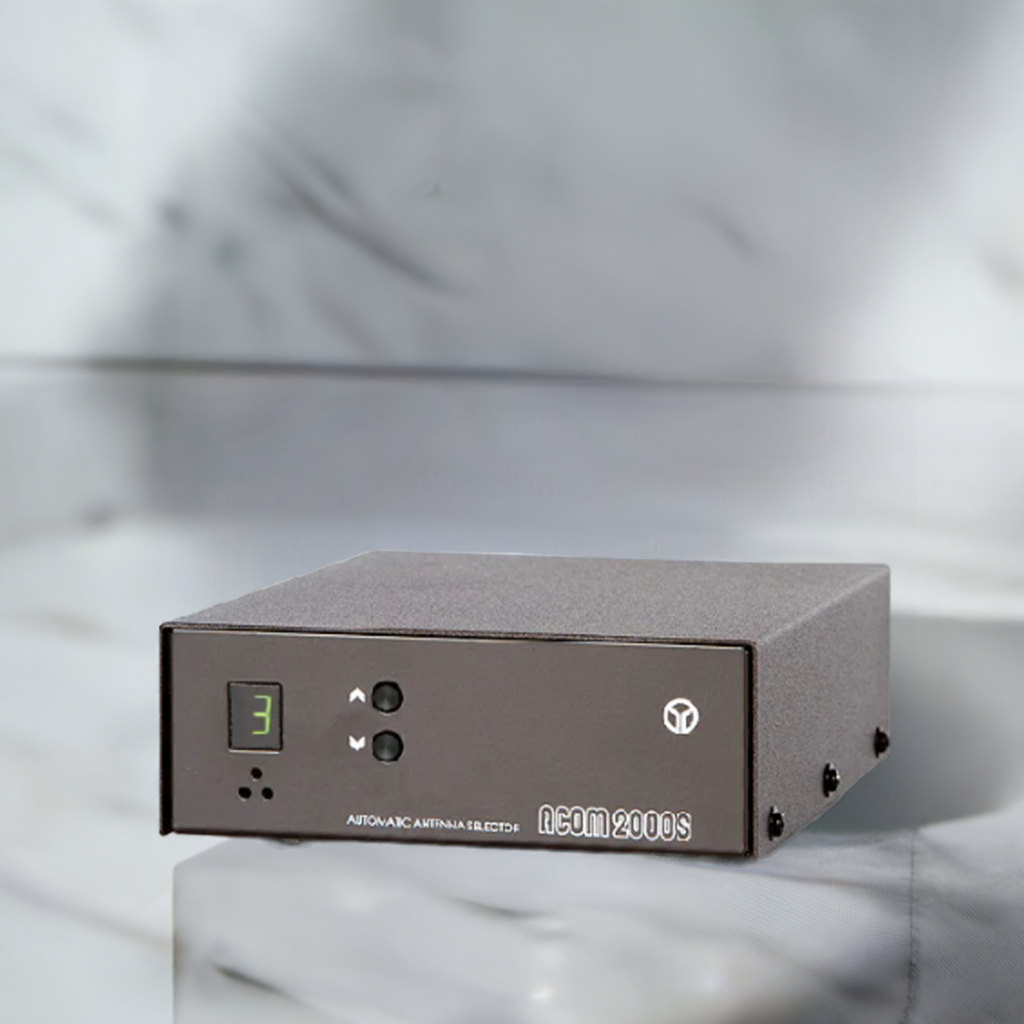

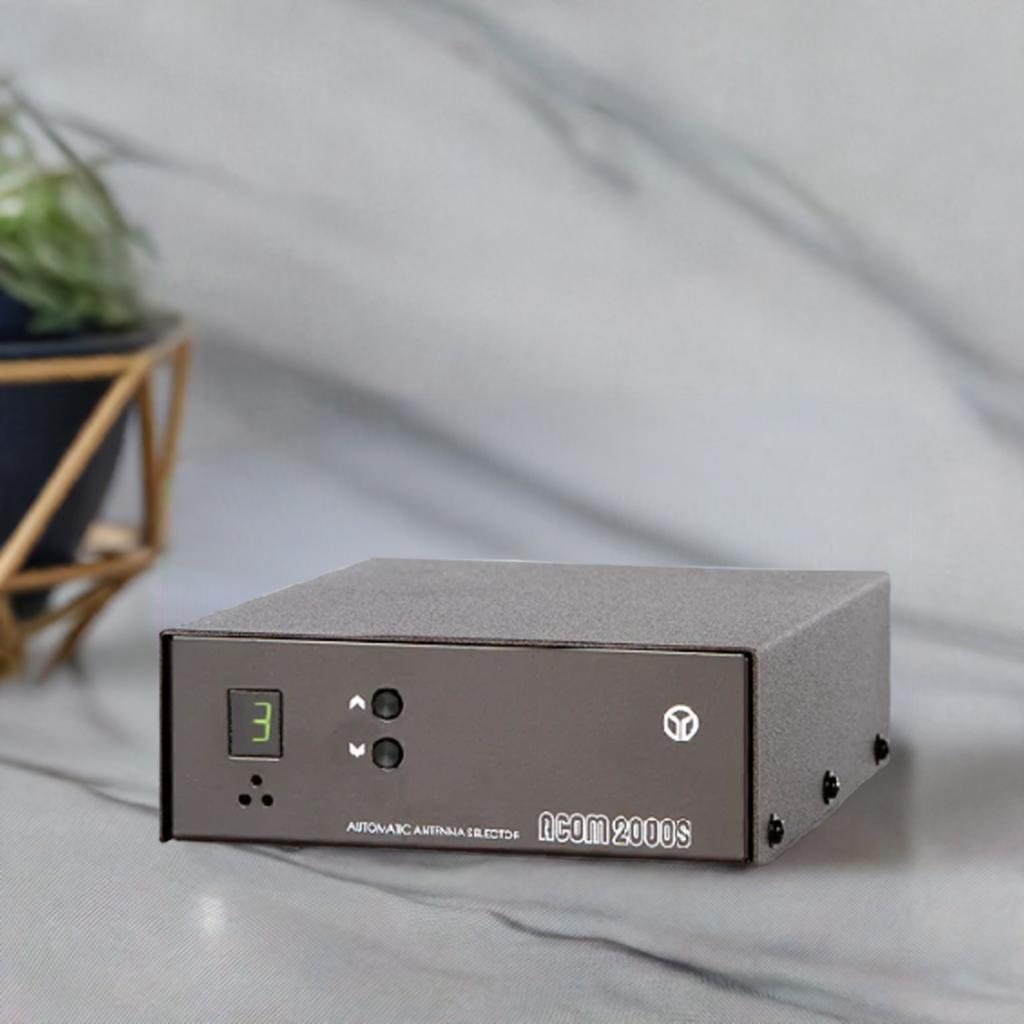

ACOM 2000S is a digital control unit designed to provide fully automatic antenna switching capabilities.

When used in combination with the ACOM 2000SW and the ACOM 2000A Automatic HF Linear Amplifier, antenna selection information generated by the ACOM 2000A is communicated to the 2000S.

The 2000S displays the currently selected antenna and drives the control signals needed to operate the remotely-located ACOM 2000SW.

In addition to the ACOM 2000A control port, the 2000S includes a general-purpose RS232 control port. This port can be driven by a pc, allowing the 2000S/2000SW combination to be used in environments where computer-controlled switching of multiple antennas is required.

Software is available for automatic tuning of all antennas on all band segments when using the 2000S and 2000SW with the 2000A. This DOS software is written to support the Yaesu FT-1000MP as the computer-controlled signal source. It also requires a special set of cables. Contact ACOM for more details.

Switch Specifications!

The ACOM 2000SW is a rugged, high-performance coaxial antenna switch for commercial and amateur applications.

The switch is a single-pole, 10-position coaxial design, intended to quickly and automatically select from multiple antennas or other RF loads.

The switch can handle up to 5kW, and operate at VSWR as high as 3:1 (at reduced power).

The unit is designed to withstand extreme environmental conditions. Advanced mechanical design shields the 2000SW internal circuitry and high-speed relays from the elements.

Fully protected against a variety of adverse conditions including antenna mismatch, hot-switching and lightning, the ACOM 2000SW is the ideal solution for safe remote switching of multiple antennas.
